Polyimide PI Hot Runner Mold Insulation Nozzle Tip

The nozzle tip insulator is made of Polyimide material, nozzle tip insulators for hot runner nozzles used for injection molding of thermoplastic products such as PET preforms, PET caps
  • JHPI-10

  • ChinaPEEK

  • According to drawing

  • Brown


Product Description


What is polyimide?

Polyimide is a non-melting high-temperature polymer. Strength, dimensional stability, and creep resistance remain high even at temperatures above 260°C. Low wear rates combined with the ability to work under unlubricated conditions and high PV rates make it the ideal material for challenging friction and wear applications, extending its lifetime and reducing maintenance costs. Its high purity and low outgassing are needed for applications in the vacuum, space, and semiconductor industry.

What is JHPI-10?

JHPI-10 is equivalent to Vespel SP-1.

JHPI-10 is the unfilled standard type of thermosetting polyimide polymer with maximum strength and elongation and the lowest young's modulus. This material also has low thermal conductivity and optimal electrical properties. The highest-temperature resistance grade, long-termed use temperature is up to 350°C- 380°C.

Polyimide properties

  • High strength, modulus, and stiffness also at high temperatures over 260 °C

  • Excellent dimensional stability to 350°C continuous use. (short-term up to 400°C)

  • Superior wear and creep resistance

  • Exceptional performance under load and at high temperatures

  • Low thermal and electrical conductivity

  • Low coefficient of friction

  • Good machinability

Why polyimide was used in the food industry?

Food processing, packaging equipment running at a faster rate, improve reliability, and because of food processing and packaging process of cleaning, milling, sterilization, oil-free, aseptic packaging process complexity, so the packaging equipment reliability and life of critical components proposed new stringent requirements previously used traditional materials such as Nylon, ultra-high molecular weight polyethylene, Teflon, graphite and other materials have been unable to meet the increasingly high-speed packaging equipment, wear, corrosion-resistant, non-toxic requests. And because plastic polyimide most excellent high temperature, wear resistance, corrosion resistance, overall performance, high strength, and the most successful application to solve the food processing and packaging machinery and equipment, key parts of the design, manufacture, and use of technical problems.

Product Show

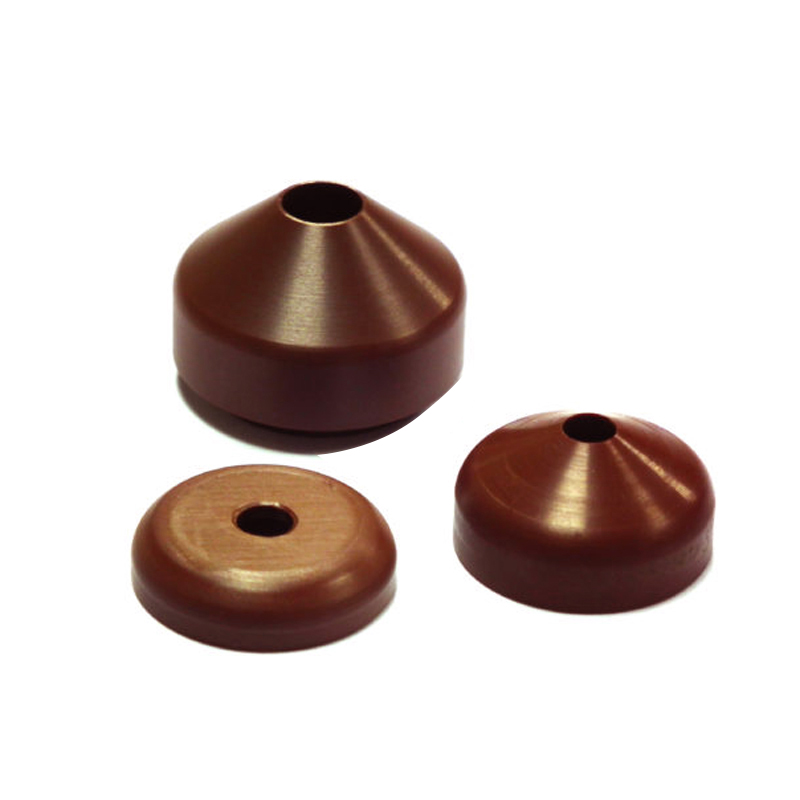

PI nozzle tips


Technical Data Sheet-- PI

(Unfilled base resin)
(Containing 15% of graphite)
(Containing 40% of graphite)
(Unfilled base resin)
(Semi-transparent moulded )
(Extrusion thermoplastic PI)
(Molded thermoplastic PI)
DensityISO 1183g/cm31.401.431.61.401.361.321.36
Tensile strength ISO 527MPa969060921219097
Ultimate ElongationISO 527%1052.581388
Bending strengthISO 178MPa14812690140171130138
Compression strength ISO 604MPa15213595150175140148
Impact strengthISO 180/UKJ/m290551388145(No break)100130(No break)
Distortion temperatureISO 75-f>300>300>300>320255230250
Heat deflection temperature ——350350350380250250250
▶ This table is a valuable help in the choice of a material. The data listed here fall with in the normal range of product properties of dry material.
However, they are not guaranteed and they should not be used to establish material specification limits nor used alone as the basis of design
