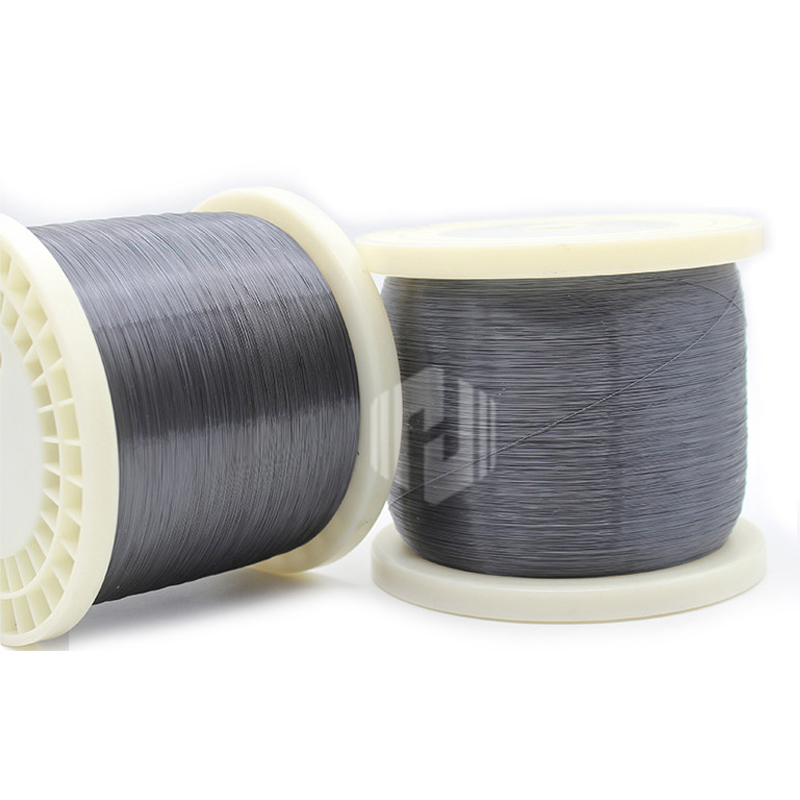

PEEK monofilament | PEEK fiber

PEEK monofilament(fiber)has very good comprehensive properties and has a wide range of uses in the military industry, especially in the fields of aircraft manufacturing, rocket, and missile launch. 0.20mm-0.30mm black PEEK monofilament can be woven into bushings to protect electronic circuits of aircraft engines and automobile exhaust systems. Excellent bending fatigue performance, wear resistance and shear resistance are the feature of PEEK monofilament(fiber).
  • PEEK5600G

  • ChinaPEEK

Availability:
Quantity:

Product Description

PEEK monofilament(fiber)has very good comprehensive properties and has a wide range of uses in the military industry, especially in the fields of aircraft manufacturing, rocket, and missile launch. 0.20mm-0.30mm black PEEK monofilament can be woven into bushings to protect electronic circuits of aircraft engines and automobile exhaust systems. Excellent bending fatigue performance, wear resistance and shear resistance are the feature of PEEK monofilament(fiber).

PEEK monofilament Yarn (5)


PEEK monofilament | PEEK fiber


PEEK(Polyether Ether Ketone) is one member of Polyaryletherketone(PAEK) with excellent performance, and it is a thermoplastic polymer with better comprehensive performance than other engineering plastic.JUNHUA PEEK  has dozens of standard PEEPEEK monofilament(fiber)has very good comprehensive properties and has a wide range of uses in the military industry, especially in the fields of aircraft manufacturing, rocket, and missile launch. 0.20mm-0.30mm black PEEK monofilament can be woven into bushings to protect electronic circuits of aircraft engines and automobile exhaust systems. Excellent bending fatigue performance, wear resistance, and shear resistance are the feature of PEEK monofilament(fiber).


PEEK monofilament | PEEK fiber


PEEK(Polyether Ether Ketone) is one member of polyaryletherketone polymers with excellent performance, and it is a thermoplastic polymer with better comprehensive performance than other engineering plastic. JUNHUA PEEK  has dozens of standard PEEKmonofilaments (fibers) for your option, as well as customized ones. JUNHUA PEEK monofilament has excellent insulating properties, excellent strength, and excellent heat and chemical resistance.


PEEK monofilament|PEEK fiber properties


JUNHUA PEEK (polyetheretherketone) monofilament (fiber) has excellent performance. The tensile strength is 600-700MPa (the breaking strength of monofilament is about 50 cN/tex), the elongation is 40%, the melting point is 340℃, and the gram weight is 430 g/10000 m (φ0.2 mm).


Item Unit Standard Value
Basic index Outer diameter mm φ0.2
Fiber Dtex(g/10000m) D 430
Shrink 200℃ % 3.7
Mechanical performance Tensile strength MPa 670
Elongation to break % 31
Breaking strength cN/tex 56
Thermal performance Melting point 343℃
Other proformance Flammable level UL94 V-0

Mildew resistance

(GJB150-10A)

/ no less than level I

Salt spray resistance

(GJB15,11A,pH=3.5)

/ Color remains stable, mechanical properties are not affected


PEEK monofilament Yarn (2)


0.2 mm PEEK Monofilament Test Data
NO. Color Diameter(mm) Tensile Strength(MPa) Breaking Strength(cN/tex)
1 Natural 0.221
631 56
2 Natural 0.218 711 56
3 Natural 0.212 709 58
4 Natural 0.217 709 58
5 Natural 0.220 704 57
0.2 mm PEEK Monofilament Test Data
NO. Color Diameter(mm) Tensile Strength(MPa) Breaking Strength(cN/tex)
1 Black 0.215 702 59
2 Black 0.221 677 60
3 Black 0.219 722 58
4 Black 0.223 651 48
5 Black 0.217 723 56

                                                                                                                                            Tested by JUNHUA PEEK R&D Center


PEEK monofilament Yarn (3)


PEEK monofilament|PEEK fiber applications


The earliest use of PEEK yarn was made into ropes for filter fabrics and belt reinforcement.JUNHUA PEEK monofilament (fiber) has the characteristics of steam resistance, abrasion resistance, creep resistance, good toughness, and good biocompatibility. Composite materials (mixed or mixed with CF, GF, etc.), fuel filters, artificial ligaments, high-temperature insulating sheaths on aircraft, etc.


PEEK monofilament Yarn (4)

                                                                                 ▲ PEEK woven filter cloth

PEEK monofilament Yarn (1)


                                                              ▲ PEEK high-temperature insulating protective jacket
