PEEK Fittings

Our PEEK Fittings are biocompatible and offers excellent chemical resistance. They are simple to use and an economical choice.

  • JUNHUA ChinaPEEK

  • According to drawing

  • Natural

Availability: Pre Order
We will fulfill the item as soon as it becomes available
We will fulfill the item as soon as it becomes available
Quantity:
Inquire Add to Basket

Overview

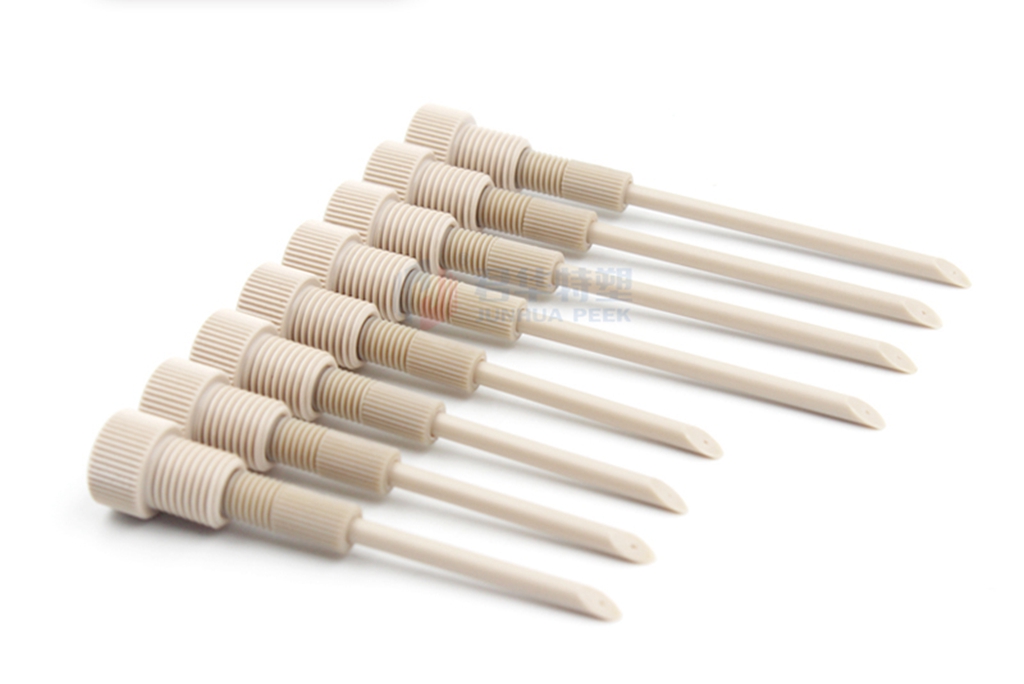

PEEK integral high pressure fitting

Features:

> Made of high-purity PEEK, with high strength, corrosion resistance, high pressure resistance and good biocompatibility.

> The maximum withstand voltage is about 40MPa.

> Integral design, no need for ferrule, convenient and easy to use, reusable

> A variety of specifications are available, and can also be customized.

> Suitable for PEEK tubing or fluoroplastic tubing with an outer diameter of 1/16.


Installation Diagram:

peek integral fitting installation diagram

Product list

Size Diagram:

PEEK fitting size diagram

Product List:

No.
 External thread Applicable OD(mm)
 Materail/color
 Pressure resistance Head type
JHZT-1601
 10-32UNF/Cone
 1/16" PEEK /Natural 30MPa
 m=0.8 Knurled
JHZT-1602 10-32UNF/Cone 1/16" PEEK /Natural 35MPa m=1.0 Knurled
JHZT-1603 10-32UNF/Cone 1/16" PEEK /Natural 27MPa m=0.8 Knurled
JHZT-1604 10-32UNF/Cone 1/16" PEEK /Natural 30MPa m=1.0 Knurled
JHZT-1605 10-32UNF/Cone 1/16" PEEK /Natural 35MPa Knurled+Flat position
JHZT-1606 10-32UNF/Cone 1/16" PEEK /Natural 25MPa Arc type knurling
JHZT-1607 10-32UNF/Cone 1/16" PEEK /Natural 30MPa Hexagon
JHZT-1609 10-32UNF/Cone 1/16" PEEK /Natural 30MPa m=0.8 Knurled
JHZT-1610 10-32UNF/Cone 1/16" PEEK /Natural 40MPa Knurled+Hexagon
JHZT-1611 10-32UNF/Cone 1/16" PEEK /Natural/Black 33MPa Hexagon
JHZT-1612 10-32UNF/Cone 1/16" PEEK /Natural 40MPa m=1.0 Knurled
