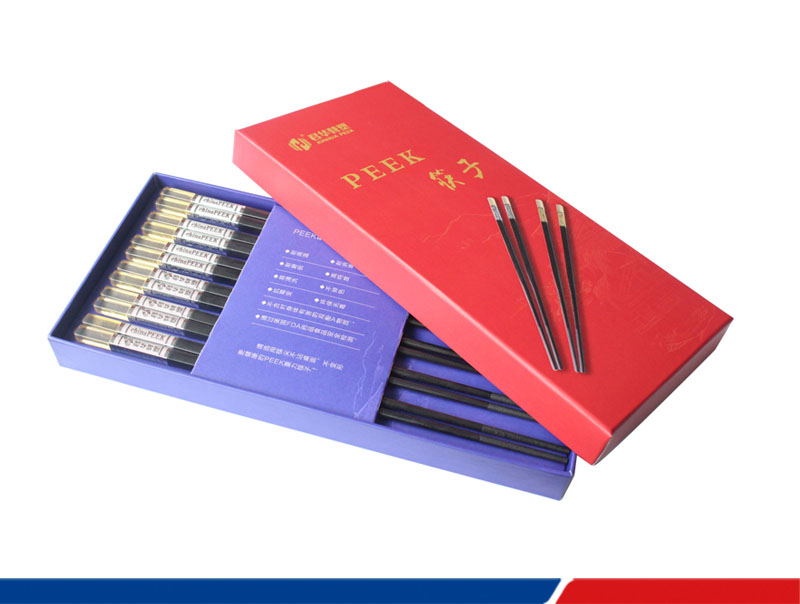

| [Product Name] PEEK Chopsticks |  |
| [Material] PEEK, PPSU | |
| [Specifications] Length 24cm,
Upper width 0.7cm, Lower diameter 0.4cm, Six pairs of chopsticks in box |
|
| [Inlay] Alloy metal | |
| [Chopstick head] PEEK5600G or PPSU | |
| [Chopstick body] PEEK5600CF30 |
PEEK (polyetheretherketone) resin is a high-performance special thermoplastic material and one of the most important varieties of commercial polyaryletherketone resins. At present, polyetheretherketone is widely used in high-end fields such as medical equipment, food processing, beverage filling machinery, aerospace, etc. due to its excellent high temperature resistance, disinfection resistance, non-deformation, and mildew resistance.
Features and advantages:
1. Durable and high temperature resistant: The long-term use temperature certified by UL in the United States is 260°C. Even when the temperature reaches 300°C, it can still maintain good mechanical properties.
2. Anti-mildew and easy to clean: The surface of the chopsticks does not absorb water, is not easy to retain bacteria and cause mildew, does not absorb oil and is easy to clean.
3. Anti-slip and easy to clip: The clipping part is anti-slip and frosted, so the food will not slip when clipping, making it more convenient to use.
4. Wear resistance: PEEK polymer and its composite materials have excellent wear resistance. They are wear-resistant, beautiful and not easy to crack.
5. High purity: Passed Reach testing and certification, does not contain harmful heavy metals such as lead, chromium, and molybdenum.
6. Sterilization resistance: PEEK and PPSU chopsticks can be repeatedly sterilized at high temperatures, such as boiling, steam and sterilization cabinet.
7. No fading or deformation: strong toughness and high temperature resistance, not easy to deform or bend.
8. It does not contain bisphenol A which is harmful to the body, complies with the US FDA drug and food safety certification, and the new material is non-toxic and harmless.
Instructions for use:
Before use: Please boil it in boiling water and clean it with detergent to remove dirt during transportation.
Product cleaning: Wash with cold or warm water. Hand washing is recommended. Dry with a rag and place in a disinfection cabinet for disinfection. The recommended disinfection time is about 3-5 minutes.
Use of disinfection box: PEEK and PPSU chopsticks are suitable for most disinfection methods, such as boiling disinfection, steam disinfection, disinfection cabinet disinfection, etc., and can be disinfected repeatedly.
PEEK gravity chopsticks: After washing PEEK and PPSU chopsticks, place them in a cage with the tips facing upwards to allow moisture to evaporate. The unique design prevents the tips of the chopsticks from sticking to the table.
Service life: PEEK and PPSU chopsticks have excellent wear resistance and can be used for a long time without fading or deformation.
Testing and certification: FDA food grade certification, SGS quality system certification, ROHS testing and other third-party certifications.
What is PEEK？
PEEK and its modified composite materials show excellent performance under high temperature and high humidity conditions. PEEK have excellent chemical corrosion resistance, self-lubricating, and wear-resistant properties, so it has become the most ideal material to replace copper alloys and ordinary rubber. Compared with them, PEEK has longer service life which can reduce equipment operating costs, improve equipment operating reliability.
High Temperature Performance
PEEK’s performance can remain stable in the temperature range from -196°C to 260°C. Under extreme working conditions, it can withstand 300″C for a short time. The performance of PEEK is still reliable even in high temperatures of several kilometers underground work environment.
High Strength and Wear Resistance
Compared with other plastics, PEEK is resistant to compression, impact and also have good fatigue resistance. PEEK is durable in mechanical equipment and wear-resistant environments.
Double the Service Life
PEEK sealing solutions can improve the part service life. Some domestic chemical companies use the PEEK5600FE20 polytetrafluoroethylene modified material designed by JUNHUA PEEK to replace the original material, the service life of the wear parts can even be extended by 1.3-3 times.
Corrosion Resistance
PEEK is chemically inert, and has no reaction to most acids, oils, greases and all other organic and inorganic solvents or enzymes, and can still maintain good strength and dimensional stability.
Self-lubricating
PEEK has low friction coefficient, low running resistance, can be used without oil in some working conditions. The equipment is cleaner, thus improving process reliability, improving energy efficiency and saving costs.
More dom in Design
Injection molds can be used for rapid injection molding of large quantities of complex special-shaped parts, and the cost is low compared to machining.
Contact Us
Common PEEK Grades and Properties
1. PEEK5600G (brown-gray/khaki) is made from pure polyetheretherketone resin and offers the best toughness and impact resistance of all PEEK grades. Pure PEEK can be sterilized using convenient methods (steam, dry heat, ethanol, and gamma-rays), and the raw materials used in its manufacture comply with EU and US FDA food compatibility regulations. These characteristics make it widely used in the medical, pharmaceutical, and food processing industries.
2. PEEK5600LF30 (black) The addition of PTFE, graphite, and carbon fiber makes PEEK5600LF30 a bearing-grade plastic. Its superior tribological properties (low coefficient of friction, wear resistance, and high peak pressure limit) make it an ideal material for this class of friction applications.
3. PEEK5600GF30 (Brown-Gray): This material is a reinforced grade of plastic filled with 30% glass fiber. It offers superior rigidity, creep resistance, and dimensional stability compared to PEEK, making it ideal for structural parts. It can withstand fixed loads for extended periods at high temperatures. If PEEK5600GF30 is used as a sliding component, its suitability should be carefully verified, as the glass fiber can scratch mating surfaces.
4. PEEK5600CF30 (Black): This material is reinforced with 30% carbon fiber. It offers superior mechanical properties (higher elastic modulus, mechanical strength, and creep resistance) and wear resistance compared to PEEK5600GF30. Furthermore, carbon fiber-reinforced plastic has 3.5 times the thermal conductivity of unreinforced PEEK, dissipating heat more quickly from the bearing surface.
Mechanical Properties
| Item | Test Standard or Instrument |
Unit | PEEK5600G 100% PEEK |
PEEK5600GF30 PEEK+30% glass fiber |
PEEK5600CF30 PEEK+30% carbon fiber |
PEEK5600LF30 PEEK+30% (carbon fiber +graphite+PTFE) |
PEEK5600FE20 PEEK+20%PTFE |
|---|---|---|---|---|---|---|---|
| Tensile Strength (23℃) | ISO 527 | MPa | 95 | 175 | 250 | 145 | 70 |
| Tensile Modulus (23℃) | ISO 527 | GPa | 3.8 | 11 | 23 | 12.5 | / |
| Elongation at Break (23℃) | ISO 527 | % | 35 | 2.0 | 1.5 | 2.2 | / |
| Flexural Strength (23℃) | ISO 178 | MPa | 155 | 235 | 350 | 220 | 118 |
| Flexural Modulus (23℃) | ISO 178 | GPa | 3.5 | 10 | 21 | 11 | / |
| Charpy Impact Strength (unnotched) | ISO 179/1U | kJ/m2 | No break | 55 | 45 | 32 | No break |
| Cantilever Beam Impact Strength (notched) | ISO 180/A | kJ/m2 | 4 | 6 | 6.5 | 4 | 6 |
Thermal Properties
| Item | Test Standard or Instrument |
Unit | PEEK5600G 100% PEEK |
PEEK5600GF30 PEEK+30% glass fiber |
PEEK5600CF30 PEEK+30% carbon fiber |
PEEK5600LF30 PEEK+30% (carbon fiber +graphite+PTFE) |
PEEK5600FE20 PEEK+20%PTFE |
|---|---|---|---|---|---|---|---|
| Melting Point | ISO11357 | ℃ | 343 | 343 | 343 | 343 | 343 |
| Glass Transition Temperature | ISO11357 | ℃ | 143 | 143 | 143 | 143 | 150 |
| Heat Deflection Temperature | ISO 75A/B | 1.8MPa. ℃ | 152 | 315 | 315 | 293 | 150 |
| Thermal Expansion Coefficient | ASTM D696 | ppm K-1 | 45 | 22 | 15 | 22 | 70 |
| Thermal Conductivity | ISO /CD22007-4 | W/(m·K) | 0.29 | 0.32 | 0.95 | 0.86 | / |
Electrical Properties
| Item | Test Standard or Instrument |
Unit | PEEK5600G 100% PEEK |
PEEK5600GF30 PEEK+30% glass fiber |
PEEK5600CF30 PEEK+30% carbon fiber |
PEEK5600LF30 PEEK+30% (carbon fiber +graphite+PTFE) |
PEEK5600FE20 PEEK+20%PTFE |
|---|---|---|---|---|---|---|---|
| Dielectric Strength (2mm) | IEC 60243-1 | kV/mm | 20 | 19 | / | / | 19 |
| Dielectric Constant | IEC 62631 | – | 3.0 | 3.3 | / | / | 2.7 |
| Surface Resistivity | GB/T31838.3 | Ω | 1015 | 1014 | / | / | 1015 |
| Volume Resistivity | IEC 62631 | Ω·cm | 1015 | 1015 | 105 | 106 | / |
Other Properties
| Item | Test Standard or Instrument |
Unit | PEEK5600G 100% PEEK |
PEEK5600GF30 PEEK+30% glass fiber |
PEEK5600CF30 PEEK+30% carbon fiber |
PEEK5600LF30 PEEK+carbon fiber +graphite+PTFE |
PEEK5600FE20 PEEK+20%PTFE |
|---|---|---|---|---|---|---|---|
| Color | / | / | Natural | Natural | Black | Black | Natural |
| Melt Flow Index (400℃, 2.16kg) | ISO 1133 | g/10min | 6-10 | 2-5 | 1-3 | 2-5 | / |
| Density | ISO 1183 | g/cm3 | 1.30±0.02 | 1.50±0.02 | 1.40±0.02 | 1.44±0.02 | 1.41±0.02 |
| Water Absorption (23℃, 24Hrs) | ISO 62-1 | % | 0.07 | 0.05 | 0.04 | 0.05 | 0.15 |
| Rockwell Hardness | / | HRR | 118 | 119 | 121 | 108 | 113 |
| Flammability Rating | UL 94 | / | V-0 | V-0 | V-0 | V-0 | / |
| Coefficient of Friction | ASTM D3702 | 100N-120rpm | 0.30-0.38 | 0.38-0.46 | 0.15-0.25 | 0.18-0.30 | 0.1-0.2 |
*This data is for reference and not a guarantee. For a more detailed data sheet, please contact our company’s technical department.
