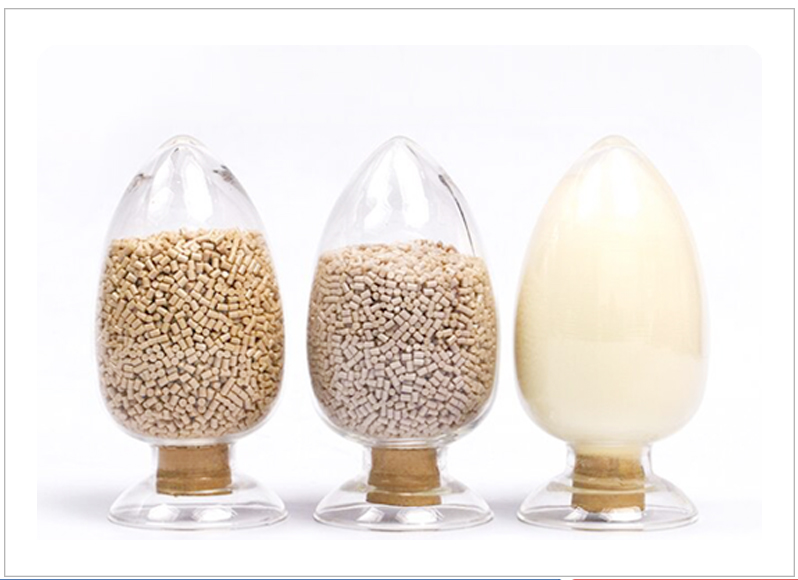

PEEK5600P Coarse Powder
Relying on the previous ten years of experience in the PEEK industry, the company has officially entered the polymerization production of PEEK resin, which can provide stronger raw material guarantees for PEEK parts and profiles and create advantageous conditions. At the same time, through the research and development and production of profiles and parts, it will also promote the research and development and production of raw material resin polymerization. The company has the ability to polymerize PEEK resin raw materials, modify granulation, continuous extrusion of plate and rod profiles, and research and development and production of finished parts. The company has a full industrial chain enterprise with outstanding cost and technical advantages! As an advanced engineering plastic, PEEK has good machinability, flame retardancy, non-toxicity, wear resistance, corrosion resistance and other characteristics. It plays an important role in weight reduction, effectively extending the service life of components, and optimizing component utilization, and the promotion of downstream applications is accelerated.
PEEK Properties
| Test items | Test standards or instruments | unit | PEEK5600P |
|---|---|---|---|
| Mechanical properties | |||
| Tensile strength (23℃) | ISO 527-2/1B/50 | MPa | 95 |
| Tensile modulus (23℃) | ISO 527-2/1B/51 | GPa | 4.0 |
| Elongation at break (23℃) | ISO 527-2/1B/50 | % | 25 |
| Bending strength (23℃) | ISO 178 | MPa | 169 |
| Flexural modulus (23°C) | ISO 178 | GPa | 4.2 |
| Compression strength (23℃) | ISO 604 | MPa | 125 |
| Simple supported beam impact strength (unnotched) | ISO 179/U | KJ/m 2 | No break |
| Izod impact strength (notched) | ISO 180/A | KJ/m 2 | 6 |
| Thermal performance | |||
| Melting point | DSC | ℃ | 343 |
| Heat deformation temperature | ISO 75-1/-2 | ℃ | 155 |
| Continuous use temperature | UL 746B | ℃ | 260 |
| Coefficient of thermal expansion | ASTM D696 | ppm K-1 | 46 |
| Flammability rating | UL 94 | / | V-0 |
| Thermal conductivity | ISO 22007 | W/（m ·K） | 0.28 |
| Electrical properties | |||
| Dielectric strength | IEC 60243-1 | KV/mm | 18 |
| Dielectric constant | IEC 60250 | – | 3.2 |
| Surface resistance | IEC 61340 | Oh | 1016 |
| Lossy dielectric | IEC 60251 | – | 0.004 |
| Other performance | |||
| color | – | True Color | |
| Actual density | ISO 1183 | g/cm 3 | 1.30 |
| Water absorption rate (25℃.24Hrs) | ISO 62 | % | 0.05 |
| Molding shrinkage (25-24℃) | 3mm thickness, 170°C flow direction |
% | 1.0 |
| Perpendicular to the flow direction | % | 1.3 | |
| Poisson’s ratio | ISO 527-2 | 0.4 | |
| Rockwell hardness | GB/T 3398.2 | HRR | 118 |
| Friction coefficient | ASTM D3702 | m | 0.30-0.35 |
| Melt index | ISO 1133 | g/10min | 10 |
Contact Us
What is PEEK？
PEEK and its modified composite materials show excellent performance under high temperature and high humidity conditions. PEEK have excellent chemical corrosion resistance, self-lubricating, and wear-resistant properties, so it has become the most ideal material to replace copper alloys and ordinary rubber. Compared with them, PEEK has longer service life which can reduce equipment operating costs, improve equipment operating reliability.
High Temperature Performance
PEEK’s performance can remain stable in the temperature range from -196°C to 260°C. Under extreme working conditions, it can withstand 300″C for a short time. The performance of PEEK is still reliable even in high temperatures of several kilometers underground work environment.
High Strength and Wear Resistance
Compared with other plastics, PEEK is resistant to compression, impact and also have good fatigue resistance. PEEK is durable in mechanical equipment and wear-resistant environments.
Double the Service Life
PEEK sealing solutions can improve the part service life. Some domestic chemical companies use the PEEK5600FE20 polytetrafluoroethylene modified material designed by JUNHUA PEEK to replace the original material, the service life of the wear parts can even be extended by 1.3-3 times.
Corrosion Resistance
PEEK is chemically inert, and has no reaction to most acids, oils, greases and all other organic and inorganic solvents or enzymes, and can still maintain good strength and dimensional stability.
Self-lubricating
PEEK has low friction coefficient, low running resistance, can be used without oil in some working conditions. The equipment is cleaner, thus improving process reliability, improving energy efficiency and saving costs.
More dom in Design
Injection molds can be used for rapid injection molding of large quantities of complex special-shaped parts, and the cost is low compared to machining.
