PEEK high pressure switching valve
The outer part of the PEEK stop valve
is made of inert PEEK material, and the inner part in contact with liquid is made of PTFE and PCTFE to ensure the acid and alkali resistance of the product.
The pressure resistance is about 10MPa, and the internal thread specification at both ends is 1/4-28UNF (flat bottom), which is suitable for connecting pipes between 1.6-3.2mm.
PEEK gem check valve/valve
core Junhua non-metallic check valve is made of PEEK material plus ruby ball and sapphire valve seat, all of which are corrosion-resistant and wear-resistant materials. It is guaranteed to have excellent chemical resistance and can be used for corrosive liquids or biological samples. The opening pressure is 1Psi and the pressure resistance can reach 40MPa. It is suitable for preventing liquid backflow in high-pressure flow paths and protecting sensitive equipment. The interface thread specifications can be customized. Please note that there are directional requirements for installation, please contact customer service for details.
Diaphragm Check Valve
Junhua’s diaphragm check valve is made of high-purity PEEK + perfluoroether material, which is corrosion-resistant and has an opening pressure of only 2psi. A variety of interfaces are available, suitable for preventing liquid backflow in low-pressure flow paths. The pressure resistance is between 3-13MPa. Suitable for biological analysis.
The spring-loaded high-pressure check valve
is made of corrosion-resistant PEEK material on the outside, imported ruby balls and sapphire ball seats on the inside, and the spring is made of gold-plated stainless steel to ensure very good corrosion resistance. It can be installed at will, with no direction requirements. The opening pressure is 15Psi, the pressure resistance can reach 40MPa, and a variety of interfaces are available, which is suitable for preventing liquid backflow in high-pressure flow paths.
The O-ring check valve
housing is made of corrosion-resistant PEEK or PCTFE, with internal perfluoroether O-ring and gold-plated stainless steel spring. The opening pressure is 15psi, the maximum pressure resistance is 20MPa, and the internal and external threads are 1/4-28UNF.
The housing of the duckbill check valve
is made of high-purity PEEK. The valve core is made of corrosion-resistant fluororubber (FKM) or perfluoroether rubber (FFKM). The opening pressure is about 1 psi. The through-hole size can be customized.
Adjustable back pressure valveSome
instruments and equipment sometimes need to increase the back pressure in the liquid circuit to make the system more stable. Our adjustable back pressure valve uses corrosion-resistant PEEK material and perfluorinated diaphragm in contact with the liquid. The adjustable back pressure range is 0-3MPa.
PEEK debubble
remover: The shell of the microfluidic debubble remover is made of high-purity PEEK, and the internal diaphragm is made of PTFE breathable membrane. It is corrosion-resistant and suitable for use at flow rates below 3mV/min with good degassing effect.
With 18 years of experience in the production and development of PEEK parts, the company has cooperated with customers in the analytical biochemical instrument industry to develop nearly 500 types of PEEK high-performance plastic parts molding molds, and has sufficient inventory of various parts.

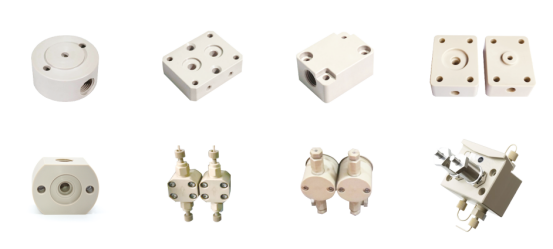

Typical products include: PEEK connectors, PEEK two-way, three-way and four-way connectors, PEEK pump heads, PEEK plugs, PEEK Luer connectors, PEEK chromatographic columns, PEEK quantitative rings, PEEK filter columns, PEEK microwave digestion tanks, PEEK capillaries, PEEK injection needles, PEEK sampling needles, PEEK nitrogen blow needles, solvent filter heads, sinkers, fluoroplastic flanged tubes, etc.
What is PEEK？
PEEK and its modified composite materials show excellent performance under high temperature and high humidity conditions. PEEK have excellent chemical corrosion resistance, self-lubricating, and wear-resistant properties, so it has become the most ideal material to replace copper alloys and ordinary rubber. Compared with them, PEEK has longer service life which can reduce equipment operating costs, improve equipment operating reliability.
High Temperature Performance
PEEK’s performance can remain stable in the temperature range from -196°C to 260°C. Under extreme working conditions, it can withstand 300″C for a short time. The performance of PEEK is still reliable even in high temperatures of several kilometers underground work environment.
High Strength and Wear Resistance
Compared with other plastics, PEEK is resistant to compression, impact and also have good fatigue resistance. PEEK is durable in mechanical equipment and wear-resistant environments.
Double the Service Life
PEEK sealing solutions can improve the part service life. Some domestic chemical companies use the PEEK5600FE20 polytetrafluoroethylene modified material designed by JUNHUA PEEK to replace the original material, the service life of the wear parts can even be extended by 1.3-3 times.
Corrosion Resistance
PEEK is chemically inert, and has no reaction to most acids, oils, greases and all other organic and inorganic solvents or enzymes, and can still maintain good strength and dimensional stability.
Self-lubricating
PEEK has low friction coefficient, low running resistance, can be used without oil in some working conditions. The equipment is cleaner, thus improving process reliability, improving energy efficiency and saving costs.
More dom in Design
Injection molds can be used for rapid injection molding of large quantities of complex special-shaped parts, and the cost is low compared to machining.
Contact Us
Common PEEK Grades and Properties
1. PEEK5600G (brown-gray/khaki) is made from pure polyetheretherketone resin and offers the best toughness and impact resistance of all PEEK grades. Pure PEEK can be sterilized using convenient methods (steam, dry heat, ethanol, and gamma-rays), and the raw materials used in its manufacture comply with EU and US FDA food compatibility regulations. These characteristics make it widely used in the medical, pharmaceutical, and food processing industries.
2. PEEK5600LF30 (black) The addition of PTFE, graphite, and carbon fiber makes PEEK5600LF30 a bearing-grade plastic. Its superior tribological properties (low coefficient of friction, wear resistance, and high peak pressure limit) make it an ideal material for this class of friction applications.
3. PEEK5600GF30 (Brown-Gray): This material is a reinforced grade of plastic filled with 30% glass fiber. It offers superior rigidity, creep resistance, and dimensional stability compared to PEEK, making it ideal for structural parts. It can withstand fixed loads for extended periods at high temperatures. If PEEK5600GF30 is used as a sliding component, its suitability should be carefully verified, as the glass fiber can scratch mating surfaces.
4. PEEK5600CF30 (Black): This material is reinforced with 30% carbon fiber. It offers superior mechanical properties (higher elastic modulus, mechanical strength, and creep resistance) and wear resistance compared to PEEK5600GF30. Furthermore, carbon fiber-reinforced plastic has 3.5 times the thermal conductivity of unreinforced PEEK, dissipating heat more quickly from the bearing surface.
Mechanical Properties
| Item | Test Standard or Instrument |
Unit | PEEK5600G 100% PEEK |
PEEK5600GF30 PEEK+30% glass fiber |
PEEK5600CF30 PEEK+30% carbon fiber |
PEEK5600LF30 PEEK+30% (carbon fiber +graphite+PTFE) |
PEEK5600FE20 PEEK+20%PTFE |
|---|---|---|---|---|---|---|---|
| Tensile Strength (23℃) | ISO 527 | MPa | 95 | 175 | 250 | 145 | 70 |
| Tensile Modulus (23℃) | ISO 527 | GPa | 3.8 | 11 | 23 | 12.5 | / |
| Elongation at Break (23℃) | ISO 527 | % | 35 | 2.0 | 1.5 | 2.2 | / |
| Flexural Strength (23℃) | ISO 178 | MPa | 155 | 235 | 350 | 220 | 118 |
| Flexural Modulus (23℃) | ISO 178 | GPa | 3.5 | 10 | 21 | 11 | / |
| Charpy Impact Strength (unnotched) | ISO 179/1U | kJ/m2 | No break | 55 | 45 | 32 | No break |
| Cantilever Beam Impact Strength (notched) | ISO 180/A | kJ/m2 | 4 | 6 | 6.5 | 4 | 6 |
Thermal Properties
| Item | Test Standard or Instrument |
Unit | PEEK5600G 100% PEEK |
PEEK5600GF30 PEEK+30% glass fiber |
PEEK5600CF30 PEEK+30% carbon fiber |
PEEK5600LF30 PEEK+30% (carbon fiber +graphite+PTFE) |
PEEK5600FE20 PEEK+20%PTFE |
|---|---|---|---|---|---|---|---|
| Melting Point | ISO11357 | ℃ | 343 | 343 | 343 | 343 | 343 |
| Glass Transition Temperature | ISO11357 | ℃ | 143 | 143 | 143 | 143 | 150 |
| Heat Deflection Temperature | ISO 75A/B | 1.8MPa. ℃ | 152 | 315 | 315 | 293 | 150 |
| Thermal Expansion Coefficient | ASTM D696 | ppm K-1 | 45 | 22 | 15 | 22 | 70 |
| Thermal Conductivity | ISO /CD22007-4 | W/(m·K) | 0.29 | 0.32 | 0.95 | 0.86 | / |
Electrical Properties
| Item | Test Standard or Instrument |
Unit | PEEK5600G 100% PEEK |
PEEK5600GF30 PEEK+30% glass fiber |
PEEK5600CF30 PEEK+30% carbon fiber |
PEEK5600LF30 PEEK+30% (carbon fiber +graphite+PTFE) |
PEEK5600FE20 PEEK+20%PTFE |
|---|---|---|---|---|---|---|---|
| Dielectric Strength (2mm) | IEC 60243-1 | kV/mm | 20 | 19 | / | / | 19 |
| Dielectric Constant | IEC 62631 | – | 3.0 | 3.3 | / | / | 2.7 |
| Surface Resistivity | GB/T31838.3 | Ω | 1015 | 1014 | / | / | 1015 |
| Volume Resistivity | IEC 62631 | Ω·cm | 1015 | 1015 | 105 | 106 | / |
Other Properties
| Item | Test Standard or Instrument |
Unit | PEEK5600G 100% PEEK |
PEEK5600GF30 PEEK+30% glass fiber |
PEEK5600CF30 PEEK+30% carbon fiber |
PEEK5600LF30 PEEK+carbon fiber +graphite+PTFE |
PEEK5600FE20 PEEK+20%PTFE |
|---|---|---|---|---|---|---|---|
| Color | / | / | Natural | Natural | Black | Black | Natural |
| Melt Flow Index (400℃, 2.16kg) | ISO 1133 | g/10min | 6-10 | 2-5 | 1-3 | 2-5 | / |
| Density | ISO 1183 | g/cm3 | 1.30±0.02 | 1.50±0.02 | 1.40±0.02 | 1.44±0.02 | 1.41±0.02 |
| Water Absorption (23℃, 24Hrs) | ISO 62-1 | % | 0.07 | 0.05 | 0.04 | 0.05 | 0.15 |
| Rockwell Hardness | / | HRR | 118 | 119 | 121 | 108 | 113 |
| Flammability Rating | UL 94 | / | V-0 | V-0 | V-0 | V-0 | / |
| Coefficient of Friction | ASTM D3702 | 100N-120rpm | 0.30-0.38 | 0.38-0.46 | 0.15-0.25 | 0.18-0.30 | 0.1-0.2 |
*This data is for reference and not a guarantee. For a more detailed data sheet, please contact our company’s technical department.
