PEEK 30% Carbon Fiber Reinforced(PEEK5600CF30) Granules
PEEK5600CF30: The fatigue resistance king of the particulate granules world
Under complex operating conditions such as high load, high wear, and chemical (solvent) corrosion, PEEK5600CF30 stand out.
This PEEK material, modified from carbon fiber, is one of the best choices for gears and bushings, with a lower coefficient of friction and better wear resistance.
- High rigidity: tensile strength up to 250Mpa, modulus up to 23Gpa.
- High-temperature stability: It still maintains dimensional stability and excellent mechanical properties in high-temperature environments.
- Excellent wear resistance: more wear-resistant than metal, and excellent self-lubricating effect at high temperatures.
PEEK5600CF30 solves customers’ needs for wear resistance, corrosion resistance, and dimensional stability, perfectly replacing traditional metal materials such as titanium and stainless steel, and bringing superior performance of lightweight, wear resistance, and self-lubrication.
As an advanced engineering plastic, PEEK plays an important role in weight reduction, effectively extending the service life of components, and optimizing component utilization due to its good machinability, flame retardant, non-toxic, wear resistance, corrosion resistance, etc., and the promotion of downstream applications is accelerating.
| Test items | Test standards or instruments | unit | PEEK5600CF30 |
|---|---|---|---|
| Mechanical properties | |||
| Tensile strength (23℃) | ISO 527-2/1B/50 | MPa | 250 |
| Tensile modulus (23℃) | ISO 527-2/1B/51 | GPa | 23.0 |
| Tensile elongation (23℃) | ISO 527-2/1B/50 | % | 4.5 |
| Bending strength (23℃) | ISO 178 | MPa | 350 |
| Flexural modulus (23°C) | ISO 178 | GPa | 18 |
| Compression strength (23℃) | ISO 604 | MPa | / |
| Simple supported beam impact strength (unnotched) | ISO 179/U | KJ/m 2 | 45 |
| Izod impact strength (notched) | ISO 180/A | KJ/m 2 | 9 |
| Thermal performance | |||
| Melting point | DSC | ℃ | 343 |
| Heat deformation temperature | ISO 75-1/-2 | ℃ | 330 |
| Continuous use temperature | UL 74685 | ℃ | 260 |
| Coefficient of thermal expansion | ASTM D696 | ppm K-1 | / |
| Flammability rating | UL 94 | / | V-0 |
| Thermal conductivity | ISO 22007 | W/(m ·K) | / |
| Electrical properties | |||
| Dielectric strength | IEC 60243-1 | KV/mm | / |
| Dielectric constant | IEC 60250 | – | / |
| Surface resistance | IEC 61340 | Ω | 10 5 |
| Lossy dielectric | IEC 60251 | – | / |
| Other performance | |||
| color | – | black | |
| Actual density | ISO 1183 | g/cm 3 | 1.40 |
| Water absorption rate (25℃.24Hrs) | ISO 62 | % | 0.05 |
| Molding shrinkage (25-24℃) | 3mm thickness, 170°C flow direction |
% | 0.3 |
| Perpendicular to the flow direction | % | 0.8 | |
| Poisson’s ratio | ISO 527-2 | / | |
| Rockwell hardness | GB/T 3398.2 | HRR | 122 |
| Friction coefficient | ASTM D3702 | μ | 0.28-0.4 |
| Melt index | ISO 1133 | g/10min | 3 |
1. Typical values are injection molding specifications. Please contact our technical department for more detailed specifications if necessary.
2. These performance indicators cannot be used as material acceptance criteria.
Contact Us
What is PEEK？
PEEK and its modified composite materials show excellent performance under high temperature and high humidity conditions. PEEK have excellent chemical corrosion resistance, self-lubricating, and wear-resistant properties, so it has become the most ideal material to replace copper alloys and ordinary rubber. Compared with them, PEEK has longer service life which can reduce equipment operating costs, improve equipment operating reliability.
High Temperature Performance
PEEK’s performance can remain stable in the temperature range from -196°C to 260°C. Under extreme working conditions, it can withstand 300″C for a short time. The performance of PEEK is still reliable even in high temperatures of several kilometers underground work environment.
High Strength and Wear Resistance
Compared with other plastics, PEEK is resistant to compression, impact and also have good fatigue resistance. PEEK is durable in mechanical equipment and wear-resistant environments.
Double the Service Life
PEEK sealing solutions can improve the part service life. Some domestic chemical companies use the PEEK5600FE20 polytetrafluoroethylene modified material designed by JUNHUA PEEK to replace the original material, the service life of the wear parts can even be extended by 1.3-3 times.
Corrosion Resistance
PEEK is chemically inert, and has no reaction to most acids, oils, greases and all other organic and inorganic solvents or enzymes, and can still maintain good strength and dimensional stability.
Self-lubricating
PEEK has low friction coefficient, low running resistance, can be used without oil in some working conditions. The equipment is cleaner, thus improving process reliability, improving energy efficiency and saving costs.
More dom in Design
Injection molds can be used for rapid injection molding of large quantities of complex special-shaped parts, and the cost is low compared to machining.

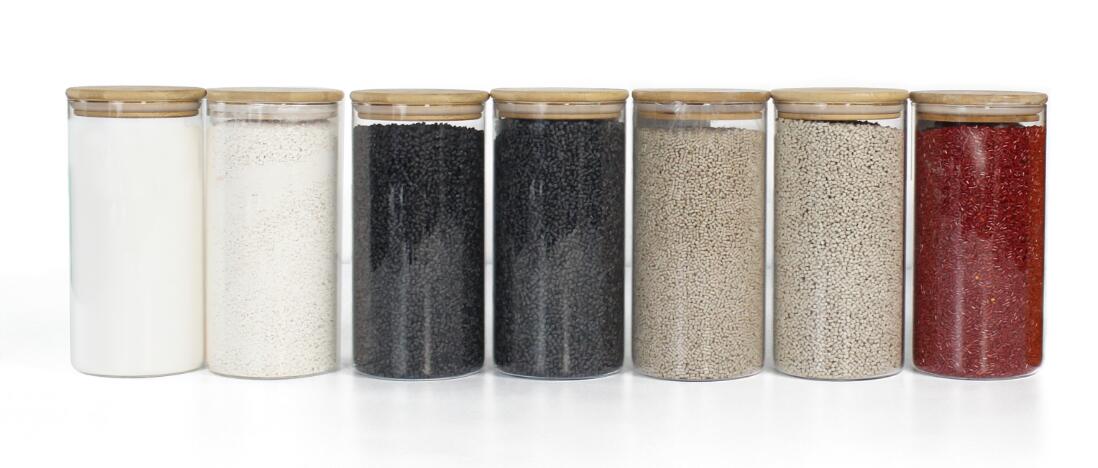

Common PEEK Grades and Properties
1. PEEK5600G (brown-gray/khaki) is made from pure polyetheretherketone resin and offers the best toughness and impact resistance of all PEEK grades. Pure PEEK can be sterilized using convenient methods (steam, dry heat, ethanol, and gamma-rays), and the raw materials used in its manufacture comply with EU and US FDA food compatibility regulations. These characteristics make it widely used in the medical, pharmaceutical, and food processing industries.
2. PEEK5600LF30 (black) The addition of PTFE, graphite, and carbon fiber makes PEEK5600LF30 a bearing-grade plastic. Its superior tribological properties (low coefficient of friction, wear resistance, and high peak pressure limit) make it an ideal material for this class of friction applications.
3. PEEK5600GF30 (Brown-Gray): This material is a reinforced grade of plastic filled with 30% glass fiber. It offers superior rigidity, creep resistance, and dimensional stability compared to PEEK, making it ideal for structural parts. It can withstand fixed loads for extended periods at high temperatures. If PEEK5600GF30 is used as a sliding component, its suitability should be carefully verified, as the glass fiber can scratch mating surfaces.
4. PEEK5600CF30 (Black): This material is reinforced with 30% carbon fiber. It offers superior mechanical properties (higher elastic modulus, mechanical strength, and creep resistance) and wear resistance compared to PEEK5600GF30. Furthermore, carbon fiber-reinforced plastic has 3.5 times the thermal conductivity of unreinforced PEEK, dissipating heat more quickly from the bearing surface.
Mechanical Properties
| Item | Test Standard or Instrument | Unit | PEEK5600G 100% PEEK |
PEEK5600GF30 PEEK+30% glass fiber |
PEEK5600CF30 PEEK+30% carbon fiber |
PEEK5600LF30 PEEK+30% (carbon fiber+graphite+PTFE) |
PEEK5600FE20 PEEK+20%PTFE |
|---|---|---|---|---|---|---|---|
| Tensile Strength (23℃) | ISO 527 | MPa | 95 | 175 | 250 | 145 | 70 |
| Tensile Modulus (23℃) | ISO 527 | GPa | 3.8 | 11 | 23 | 12.5 | / |
| Elongation at Break (23℃) | ISO 527 | % | 35 | 2.0 | 1.5 | 2.2 | / |
| Flexural Strength (23℃) | ISO 178 | MPa | 155 | 235 | 350 | 220 | 118 |
| Flexural Modulus (23℃) | ISO 178 | GPa | 3.5 | 10 | 21 | 11 | / |
| Charpy Impact Strength (unnotched) | ISO 179/1U | kJ/m2 | No break | 55 | 45 | 32 | No break |
| Cantilever Beam Impact Strength (notched) | ISO 180/A | kJ/m2 | 4 | 6 | 6.5 | 4 | 6 |
Thermal Properties
| Item | Test Standard or Instrument | Unit | PEEK5600G 100% PEEK |
PEEK5600GF30 PEEK+30% glass fiber |
PEEK5600CF30 PEEK+30% carbon fiber |
PEEK5600LF30 PEEK+30% (carbon fiber+graphite+PTFE) |
PEEK5600FE20 PEEK+20%PTFE |
|---|---|---|---|---|---|---|---|
| Melting Point | ISO11357 | ℃ | 343 | 343 | 343 | 343 | 343 |
| Glass Transition Temperature | ISO11357 | ℃ | 143 | 143 | 143 | 143 | 150 |
| Heat Deflection Temperature | ISO 75A/B | 1.8MPa. ℃ | 152 | 315 | 315 | 293 | 150 |
| Thermal Expansion Coefficient | ASTM D696 | ppm K-1 | 45 | 22 | 15 | 22 | 70 |
| Thermal Conductivity | ISO /CD22007-4 | W/(m·K) | 0.29 | 0.32 | 0.95 | 0.86 | / |
Electrical Properties
| Item | Test Standard or Instrument | Unit | PEEK5600G 100% PEEK |
PEEK5600GF30 PEEK+30% glass fiber |
PEEK5600CF30 PEEK+30% carbon fiber |
PEEK5600LF30 PEEK+30% (carbon fiber+graphite+PTFE) |
PEEK5600FE20 PEEK+20%PTFE |
|---|---|---|---|---|---|---|---|
| Dielectric Strength (2mm) | IEC 60243-1 | kV/mm | 20 | 19 | / | / | 19 |
| Dielectric Constant | IEC 62631 | – | 3.0 | 3.3 | / | / | 2.7 |
| Surface Resistivity | GB/T31838.3 | Ω | 1015 | 1014 | / | / | 1015 |
| Volume Resistivity | IEC 62631 | Ω·cm | 1015 | 1015 | 105 | 106 | / |
Other Properties
| Item | Test Standard or Instrument | Unit | PEEK5600G 100% PEEK |
PEEK5600GF30 PEEK+30% glass fiber |
PEEK5600CF30 PEEK+30% carbon fiber |
PEEK5600LF30 PEEK+carbon fiber+graphite+PTFE |
PEEK5600FE20 PEEK+20%PTFE |
|---|---|---|---|---|---|---|---|
| Color | / | / | Natural | Natural | Black | Black | Natural |
| Melt Flow Index (400℃, 2.16kg) | ISO 1133 | g/10min | 6-10 | 2-5 | 1-3 | 2-5 | / |
| Density | ISO 1183 | g/cm3 | 1.30±0.02 | 1.50±0.02 | 1.40±0.02 | 1.44±0.02 | 1.41±0.02 |
| Water Absorption (23℃, 24Hrs) | ISO 62-1 | % | 0.07 | 0.05 | 0.04 | 0.05 | 0.15 |
| Rockwell Hardness | / | HRR | 118 | 119 | 121 | 108 | 113 |
| Flammability Rating | UL 94 | / | V-0 | V-0 | V-0 | V-0 | / |
| Coefficient of Friction | ASTM D3702 | 100N-120rpm | 0.30-0.38 | 0.38-0.46 | 0.15-0.25 | 0.18-0.30 | 0.1-0.2 |
*This data is for reference and not a guarantee. For a more detailed data sheet, please contact our company’s technical department.
