PI Medical Grade(PI-MT) Tube
With the adjustment of the company’s development strategy and the changes in the market environment, we are pleased to announce that the company’s new medical PI capillary products have been officially launched on the market.

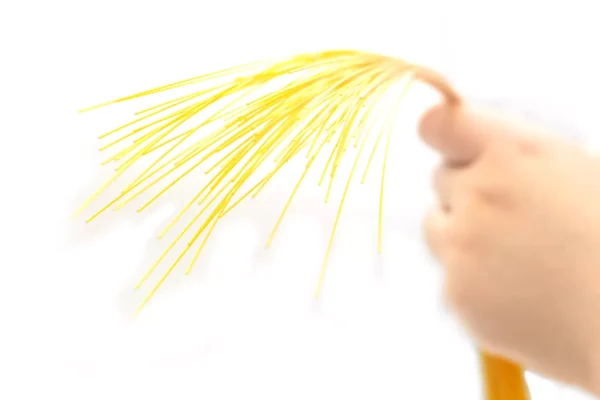

PI Medical Grade(PI-MT) Tube is a polymer material with excellent performance. It is widely used in medical intervention and other fields due to its high temperature resistance, low temperature resistance, solvent resistance, radiation resistance and other characteristics.
Polyimide (PI) is an organic polymer material with excellent comprehensive performance. It can withstand high temperatures of more than 400°C, has a long-term use temperature range of -200 to 300°C, has no obvious melting point, and has high insulation performance. It belongs to F to H grade insulation materials. The casing of this material has good electronic, physical and mechanical insulation properties. At extremely high and low temperatures, the casing has significant radiation resistance and flexibility.
Medical capillary PI Medical Grade(PI-MT) Tube is our new commitment to product quality and medical industry standards. This brand not only represents our pursuit of excellence, but also reflects our emphasis on medical safety.
To ensure the safety and reliability of JUNHUA®PI-MT medical capillary in the medical field, we conduct a series of rigorous biological tests to ensure that it meets the usage standards of customers and the market.
PI Medical Grade(PI-MT) Tube Features
1) Good dimensional stability, the accuracy can be stabilized at ±0.03mm, and the tube wall thickness is 0.05mm-0.5mm.
2) Good heat resistance and thermal insulation, no brittleness at low temperature, and can be used for a long time at 250℃.
3) Good insulation performance, dielectric strength not less than 300kv/mm.
4) Good mechanical properties, tensile strength not less than 150MPa, tensile elongation not less than 10%.
5) Good chemical resistance, resistant to most solvents except strong acid and alkali solutions.
6) Good sterilization properties, can withstand various disinfection methods such as ethylene oxide, high temperature and high pressure, and irradiation.
7) Strong bonding properties. After surface treatment, the material can have good bonding strength with metals and other materials.
PI Performance Test Data
| Mechanical Properties | Test Standard or Instrument | Unit | JUNHUA® PI-MT |
|---|---|---|---|
| Density | ISO 1183 | g/cm3 | 1.32 |
| Tensile Strength | ISO 527 | MPa | 95 |
| Elongation at Break | ISO 527 | % | 40 |
| Flexural Strength | ISO 178 | MPa | 138 |
| Dielectric Strength (2mm) | IEC 60243-1 | KV/mm | 25 |
| Heat Distortion Temperature | ISO 75-1/-2 | °C | 230 |
| Continuous Use Temperature | UL 746B | °C | 250 |
PI Medical Catheter Tube Specifications
| Serial Number | Outer Diameter | Inner Diameter |
|---|---|---|
| 1 | Φ0.5 | Φ0.3 Φ0.4 |
| 2 | Φ0.8 | Φ0.3 Φ0.4 Φ0.5 Φ0.6 |
| 3 | Φ1.0 | Φ0.4 Φ0.6 Φ0.8 Φ0.9 |
| 4 | Φ1.2 | Φ0.3 Φ0.5 Φ0.7 Φ0.9 Φ1.1 |
| 5 | Φ1.4 | Φ0.4 Φ0.6 Φ0.8 Φ1.0 Φ1.2 |
| 6 | Φ1.5 | Φ0.3 Φ0.5 Φ0.7 Φ0.9 Φ1.1 Φ1.3 |
| 7 | Φ1.6 | Φ0.3 Φ0.5 Φ0.7 Φ0.9 Φ1.1 Φ1.3 Φ1.5 |
| 8 | Φ1.8 | Φ0.4 Φ0.6 Φ0.8 Φ1.0 Φ1.2 Φ1.4 Φ1.5 Φ1.6 Φ1.7 |
| 9 | Φ2.0 | Φ0.3 Φ0.5 Φ0.7 Φ0.9 Φ1.0 Φ1.2 Φ1.4 Φ1.6 Φ1.7 Φ1.8 |
| 10 | Φ2.2 | Φ0.4 Φ0.6 Φ0.8 Φ1.0 Φ1.2 Φ1.4 Φ1.6 Φ1.8 Φ1.9 Φ2.1 |
| 11 | Φ2.4 | Φ0.3 Φ0.5 Φ0.7 Φ0.9 Φ1.1 Φ1.3 Φ1.5 Φ1.7 Φ1.9 Φ2.0 Φ2.3 |
| 12 | Φ2.6 | Φ0.4 Φ0.6 Φ0.8 Φ1.0 Φ1.2 Φ1.4 Φ1.6 Φ1.8 Φ2.0 Φ2.2 Φ2.4 Φ2.5 |
| 13 | Φ2.8 | Φ0.3 Φ0.5 Φ0.7 Φ0.9 Φ1.1 Φ1.3 Φ1.5 Φ1.7 Φ1.9 Φ2.1 Φ2.3 Φ2.5 Φ2.7 |
| 14 | Φ3.0 | Φ0.4 Φ0.6 Φ0.8 Φ1.0 Φ1.2 Φ1.4 Φ1.6 Φ1.8 Φ2.0 Φ2.2 Φ2.4 Φ2.6 Φ2.8 Φ2.9 |
| 15 | Φ3.2 | Φ0.3 Φ0.5 Φ0.7 Φ0.9 Φ1.1 Φ1.3 Φ1.5 Φ1.7 Φ1.9 Φ2.1 Φ2.3 Φ2.5 Φ2.7 Φ2.9 Φ3.0 |
| 16 | Φ4.95 | Φ4.15 Φ4.25 Φ4.35 Φ4.55 |
| 17 | Φ10 | Φ8.7 |
| 18 | Φ12 | Φ10 Φ11 |
| 19 | 1/32 | Φ0.25 Φ0.5 |
| 20 | 1/16 | Φ0.1 Φ0.13 Φ0.25 Φ0.38 Φ0.5 Φ0.75 Φ1.0 Φ1.2 |
| 21 | 1/18 | Φ0.5 Φ0.75 Φ1.0 Φ1.2 Φ2.0 Φ2.2 |
PI Medical Grade(PI-MT) Tube Application
As a tube with geometric dimensions, electrical, mechanical, and precision, it can be used in small spaces, harsh high and low temperature environments, complex electromagnetic and radiation environments, etc. JUNHUA®PI-MT catheters are suitable for various medical catheters, including nerve catheters, implanted catheters, cardiac catheters, etc. Due to its high temperature resistance, it has advantages in processing and high temperature preoperative treatment. Because of its better mechanical properties and chemical stability, it is suitable for more complex medical processes, such as catheters that remain in the body for a long time.
What is PEEK？
PEEK and its modified composite materials show excellent performance under high temperature and high humidity conditions. PEEK have excellent chemical corrosion resistance, self-lubricating, and wear-resistant properties, so it has become the most ideal material to replace copper alloys and ordinary rubber. Compared with them, PEEK has longer service life which can reduce equipment operating costs, improve equipment operating reliability.
High Temperature Performance
PEEK’s performance can remain stable in the temperature range from -196°C to 260°C. Under extreme working conditions, it can withstand 300″C for a short time. The performance of PEEK is still reliable even in high temperatures of several kilometers underground work environment.
High Strength and Wear Resistance
Compared with other plastics, PEEK is resistant to compression, impact and also have good fatigue resistance. PEEK is durable in mechanical equipment and wear-resistant environments.
Double the Service Life
PEEK sealing solutions can improve the part service life. Some domestic chemical companies use the PEEK5600FE20 polytetrafluoroethylene modified material designed by JUNHUA PEEK to replace the original material, the service life of the wear parts can even be extended by 1.3-3 times.
Corrosion Resistance
PEEK is chemically inert, and has no reaction to most acids, oils, greases and all other organic and inorganic solvents or enzymes, and can still maintain good strength and dimensional stability.
Self-lubricating
PEEK has low friction coefficient, low running resistance, can be used without oil in some working conditions. The equipment is cleaner, thus improving process reliability, improving energy efficiency and saving costs.
More dom in Design
Injection molds can be used for rapid injection molding of large quantities of complex special-shaped parts, and the cost is low compared to machining.
Contact Us
Common PEEK Grades and Properties
1. PEEK5600G (brown-gray/khaki) is made from pure polyetheretherketone resin and offers the best toughness and impact resistance of all PEEK grades. Pure PEEK can be sterilized using convenient methods (steam, dry heat, ethanol, and gamma-rays), and the raw materials used in its manufacture comply with EU and US FDA food compatibility regulations. These characteristics make it widely used in the medical, pharmaceutical, and food processing industries.
2. PEEK5600LF30 (black) The addition of PTFE, graphite, and carbon fiber makes PEEK5600LF30 a bearing-grade plastic. Its superior tribological properties (low coefficient of friction, wear resistance, and high peak pressure limit) make it an ideal material for this class of friction applications.
3. PEEK5600GF30 (Brown-Gray): This material is a reinforced grade of plastic filled with 30% glass fiber. It offers superior rigidity, creep resistance, and dimensional stability compared to PEEK, making it ideal for structural parts. It can withstand fixed loads for extended periods at high temperatures. If PEEK5600GF30 is used as a sliding component, its suitability should be carefully verified, as the glass fiber can scratch mating surfaces.
4. PEEK5600CF30 (Black): This material is reinforced with 30% carbon fiber. It offers superior mechanical properties (higher elastic modulus, mechanical strength, and creep resistance) and wear resistance compared to PEEK5600GF30. Furthermore, carbon fiber-reinforced plastic has 3.5 times the thermal conductivity of unreinforced PEEK, dissipating heat more quickly from the bearing surface.
Mechanical Properties
| Item | Test Standard or Instrument |
Unit | PEEK5600G 100% PEEK |
PEEK5600GF30 PEEK+30% glass fiber |
PEEK5600CF30 PEEK+30% carbon fiber |
PEEK5600LF30 PEEK+30% (carbon fiber +graphite+PTFE) |
PEEK5600FE20 PEEK+20%PTFE |
|---|---|---|---|---|---|---|---|
| Tensile Strength (23℃) | ISO 527 | MPa | 95 | 175 | 250 | 145 | 70 |
| Tensile Modulus (23℃) | ISO 527 | GPa | 3.8 | 11 | 23 | 12.5 | / |
| Elongation at Break (23℃) | ISO 527 | % | 35 | 2.0 | 1.5 | 2.2 | / |
| Flexural Strength (23℃) | ISO 178 | MPa | 155 | 235 | 350 | 220 | 118 |
| Flexural Modulus (23℃) | ISO 178 | GPa | 3.5 | 10 | 21 | 11 | / |
| Charpy Impact Strength (unnotched) | ISO 179/1U | kJ/m2 | No break | 55 | 45 | 32 | No break |
| Cantilever Beam Impact Strength (notched) | ISO 180/A | kJ/m2 | 4 | 6 | 6.5 | 4 | 6 |
Thermal Properties
| Item | Test Standard or Instrument |
Unit | PEEK5600G 100% PEEK |
PEEK5600GF30 PEEK+30% glass fiber |
PEEK5600CF30 PEEK+30% carbon fiber |
PEEK5600LF30 PEEK+30% (carbon fiber +graphite+PTFE) |
PEEK5600FE20 PEEK+20%PTFE |
|---|---|---|---|---|---|---|---|
| Melting Point | ISO11357 | ℃ | 343 | 343 | 343 | 343 | 343 |
| Glass Transition Temperature | ISO11357 | ℃ | 143 | 143 | 143 | 143 | 150 |
| Heat Deflection Temperature | ISO 75A/B | 1.8MPa. ℃ | 152 | 315 | 315 | 293 | 150 |
| Thermal Expansion Coefficient | ASTM D696 | ppm K-1 | 45 | 22 | 15 | 22 | 70 |
| Thermal Conductivity | ISO /CD22007-4 | W/(m·K) | 0.29 | 0.32 | 0.95 | 0.86 | / |
Electrical Properties
| Item | Test Standard or Instrument |
Unit | PEEK5600G 100% PEEK |
PEEK5600GF30 PEEK+30% glass fiber |
PEEK5600CF30 PEEK+30% carbon fiber |
PEEK5600LF30 PEEK+30% (carbon fiber +graphite+PTFE) |
PEEK5600FE20 PEEK+20%PTFE |
|---|---|---|---|---|---|---|---|
| Dielectric Strength (2mm) | IEC 60243-1 | kV/mm | 20 | 19 | / | / | 19 |
| Dielectric Constant | IEC 62631 | – | 3.0 | 3.3 | / | / | 2.7 |
| Surface Resistivity | GB/T31838.3 | Ω | 1015 | 1014 | / | / | 1015 |
| Volume Resistivity | IEC 62631 | Ω·cm | 1015 | 1015 | 105 | 106 | / |
Other Properties
| Item | Test Standard or Instrument |
Unit | PEEK5600G 100% PEEK |
PEEK5600GF30 PEEK+30% glass fiber |
PEEK5600CF30 PEEK+30% carbon fiber |
PEEK5600LF30 PEEK+carbon fiber +graphite+PTFE |
PEEK5600FE20 PEEK+20%PTFE |
|---|---|---|---|---|---|---|---|
| Color | / | / | Natural | Natural | Black | Black | Natural |
| Melt Flow Index (400℃, 2.16kg) | ISO 1133 | g/10min | 6-10 | 2-5 | 1-3 | 2-5 | / |
| Density | ISO 1183 | g/cm3 | 1.30±0.02 | 1.50±0.02 | 1.40±0.02 | 1.44±0.02 | 1.41±0.02 |
| Water Absorption (23℃, 24Hrs) | ISO 62-1 | % | 0.07 | 0.05 | 0.04 | 0.05 | 0.15 |
| Rockwell Hardness | / | HRR | 118 | 119 | 121 | 108 | 113 |
| Flammability Rating | UL 94 | / | V-0 | V-0 | V-0 | V-0 | / |
| Coefficient of Friction | ASTM D3702 | 100N-120rpm | 0.30-0.38 | 0.38-0.46 | 0.15-0.25 | 0.18-0.30 | 0.1-0.2 |
*This data is for reference and not a guarantee. For a more detailed data sheet, please contact our company’s technical department.
