JUNHUA® PEEK Monofilament (fiber) new arrival
01PEEK Monofilament
As we all know, PEEK is one of the most excellent polyether ketone polymers, which is a thermoplastic polymer with good comprehensive performance. PEEK products are very rich, the main categories are injection molding parts, continuous extrusion plate/bar profiles, film, capillary and other products.
Jiangsu Junhua Special Plastic according to customer needs to develop part of the size of JUNHUA@PEEK monofilament (fiber). JUNHUA@PEEK Monofilament has excellent insulation properties, excellent strength and excellent heat and chemical resistance.
01PEEK Monofilament Performance
JUNHUA@PEEK(polyetheretherketone) monofilament (fibers) show high performance.
Tensile strength 600~700MPa (the breaking strength of the single filament is about 50 cN/ Tex),
Elongation 40%,
Melting point 340℃,
G weight 430 g/10000 m (φ0.2mm).
| JUNHUA PEEK5600G (natural color) 0.2mm fiber | |||
| No. | Size(mm) | Tensile strength(Mpa) | Fracture strength(cN/Tex) |
| 1 | 0.221 | 631 | 56 |
| 2 | 0.218 | 711 | 56 |
| 3 | 0.212 | 709 | 58 |
| 4 | 0.217 | 709 | 58 |
| 5 | 0.220 | 704 | 57 |
| JUNHUA PEEK5600GH (black color) 0.2mm fiber | |||
| No. | Size(mm) | Tensile strength(Mpa) | Fracture strength(cN/Tex) |
| 1 | 0.215 | 702 | 59 |
| 2 | 0.221 | 677 | 60 |
| 3 | 0.219 | 722 | 58 |
| 4 | 0.223 | 651 | 48 |
| 5 | 0.217 | 723 | 56 |
03PEEK Monofilament Application

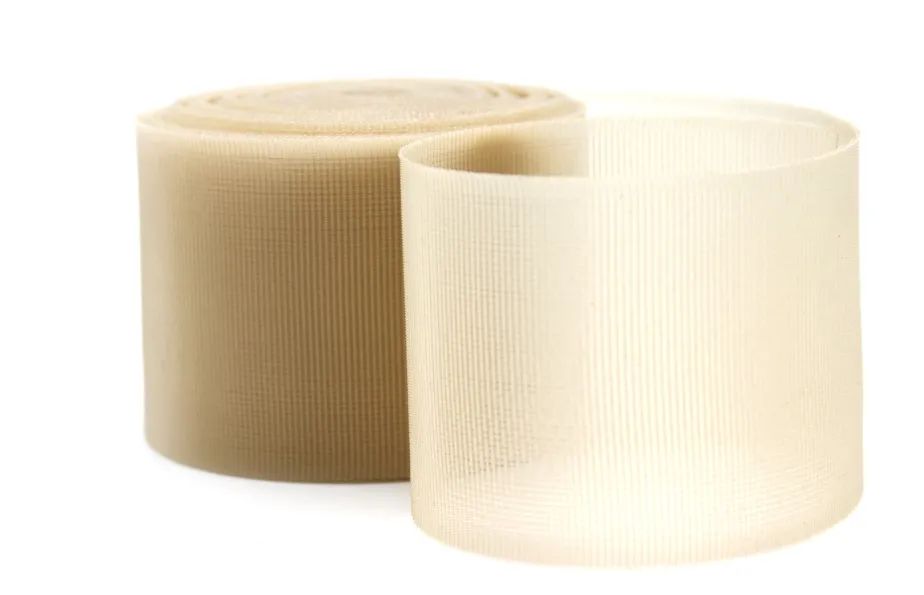

PEEK woven filter cloth

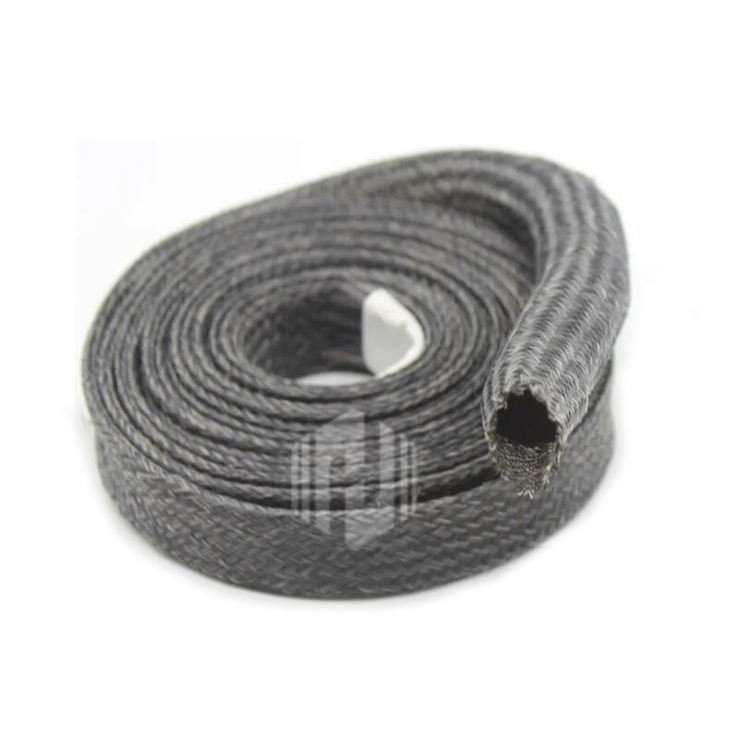

JUNHUA@PEEK Monofilaments (fibers) have the characteristics of steam resistance, wear resistance, coil resistance, good toughness and good biocompatibility. They are widely used in dry canvas of paper machinery, heat-resistant press cloth, racquet network cable, composite materials (mixed with CF,GF, etc.), fuel filters, artificial ligaments, high temperature insulating sheath on aircraft, etc.
